Screen Printing Table

Screen Printing Table.

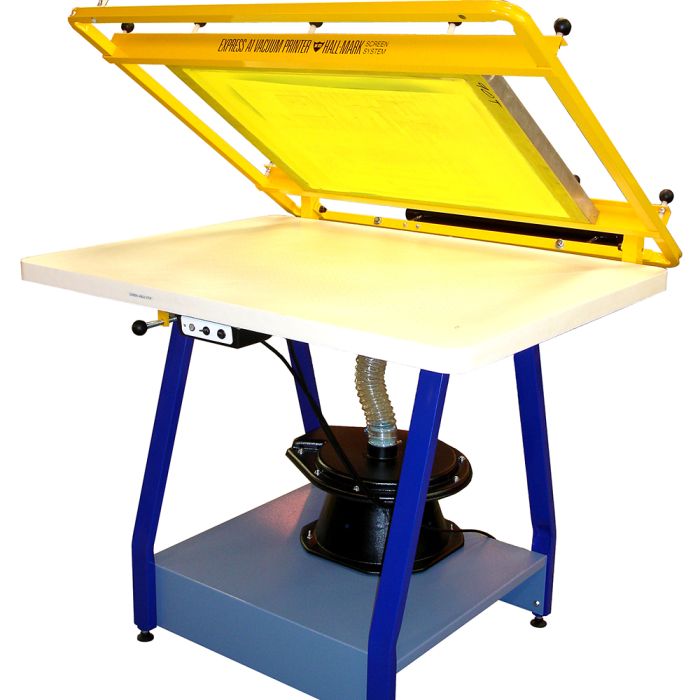

This table features a vacuum area of 508 x 380mm, with a maximum sheet size of 760 x 710mm. It has a fully adjustable screen register, taking up to a maximum screen size of 785 x 635mm. The lift-off is 40mm, and the frame lift angle stop is adjustable to zero.

The exhauster unit runs very quietly, is remote standing 240VAC 1/3hp, suppressed and comes with 10ft of three cored cable and plug.

The vacuum operation is automatic as the screen is lowered for printing. The melamine printing bed and work surfaces are ink and solvent resistant, and the whole unit is robustly constructed to withstand constant use. Supplied as a free-standing unit complete with a stand.

Dimensions: 1070 x 840 x 900mm (W x D x H). 52kg.
