BenchVent Extraction Filtration Cabinets

Extraction Filtration Cabinets are designed for classrooms or workshops to extract and eliminate unwanted fumes, capture dust and create a safer working environment to meet CoSHH regulations. Suitable for aerosol adhesives/paints, aerosol lacquers, air brush, fixatives, sanding and adhesives required for artwork sheets, 3D models, prototypes and ceramic parts.

Large particulates (> 5 microns) are filtered out and fine particulates (<5 microns) together with odours, gases, vapours and fumes within the hood enclosure are exhausted to atmosphere via the duct.

Quite operation with simple assembly. Place onto surface such as desk, bench or trolley then plug in and switch on to start.

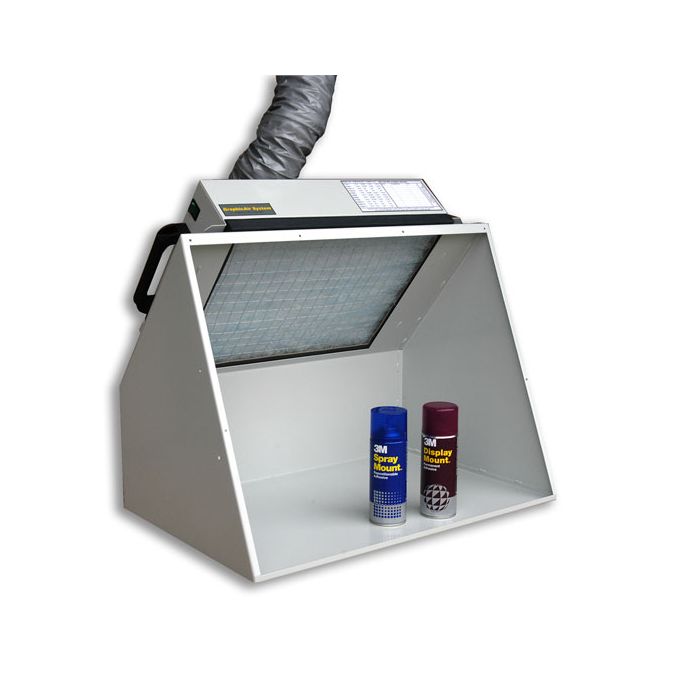

Similar to the recirculatory filtration cabinets but instead of recirculating the air, fumes are exhaust into atmosphere via a flexi-duct. The flexi-duct can be fixed to a standard domestic vent or simply placed through a partially open window. MP601 A2 cabinet comes with one 100mm x 2m duct and carry handles to aid with portability. A1-MP600 has two ducts and a "Y" piece enabling both ducts to be placed through one vent.

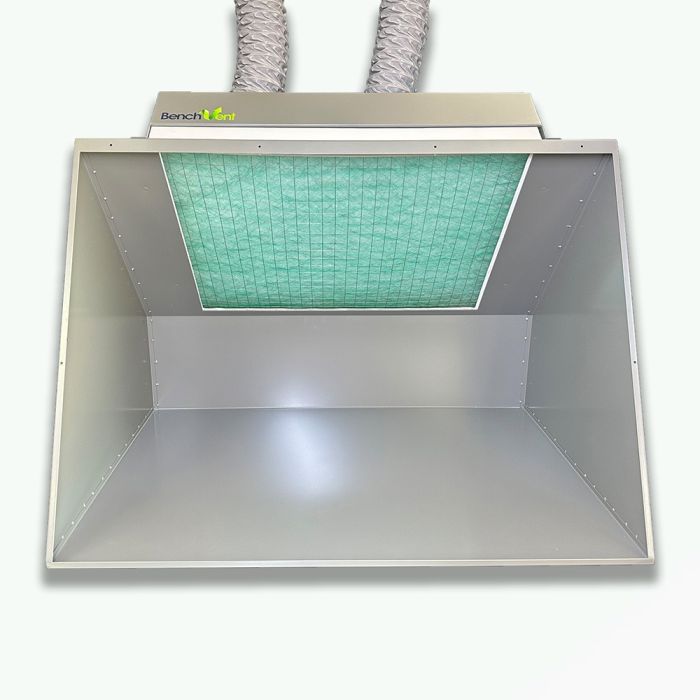

BV100H-D A1 includes: Filter unit with 2 x centrifugal fans, Hood Enclosure,2 x 2mtrs Flexi-Ducts – 100mm diameter, 1 x Particulate filter, Power Lead, data/warranty booklet.

Internal dimensions (W x D x H) - 950 x 680 x 615

External Dimensions (W x D x H) – 955 x 750 x 740

BV200H-D A2 includes: Filter Unit with Fan, Hood Enclosure, 1 x Particulate Filter, Power Lead, Data/Warranty Booklet

Internal dimensions (W x D x H) – 680 x 610 x 610

External Dimensions (W x D x H)- 675 x 525 x 445
